Burners Spares



DANFOSS, Denmark





Danfoss Nozzles


  These are Oil Burner Nozzles for industrial applications for Light, Medium and Heavy Oils.
  Capacity in USgal/hr available from 0.40 upto 100 gph, calibrated at 100 psi pressure.
  Spray angles of 30, 45, 60, 80 and 90 degrees.
  Spray patterns of R, PLP and HO depending upon type of oil & applications can be used.
  HO nozzles are specifically designed for Heavy Oil and All Nozzles are individually tested.
  Monarch Nozzles with by-pass attachments fitted are available in some specific sizes Ex. Stock with us.
  Other sizes can be fitted with these by-pass attachments on request and against specific order from customers.


Danfoss Burner Controller


  Models OBC 82.10 and 84.10 available in stock.
  Microprocessor based controller offers Stable and Precise Timings.
  Suitable for One / two stage burners upto 30 kg/hr capacity with and without preheater.


Danfoss Burner Controller:

Type oil burner controller

Oil Burner Control OBC 81A.12
Oil Burner Control OBC 82.10
Oil Burner Control OBC 82.11
Oil Burner Control OBC 82A.12
Oil Burner Control OBC 84.10
Oil Burner Control OBC 85B.10
Oil Burner Controls OBC 81.10
Oil Burner Controls OBC 81A.10

Danfoss Photocells


  Danfoss photo resistors of type LD and LDS Series are suitable for to detect flame in yellow flame burners.
  These are compatible with Danfoss OBC and BHO controllers and are available in black and red color indicating normal and high sensitivity of photo resistors.
  These are available in different Cable Lengths and with suitable Clamp & Flange for Mounting Purposes.


Danfoss EBI Transformers


  These are new EBI series 4 transformers of electronic type D and these are lead fee and RoHs compliant.
  These are available for both Intermittent and Continuous Duty for single pole and two pole variety for small and medium Oil and Gas Burners.
  Models available are EBI4 - 052F 4030 / 4038 / 4034 / 4040 / 4036 and 4031 varieties with plug in type primary cable.
  These are already in built with suitable interference suppression free filters to overcome field disturbances in panels.

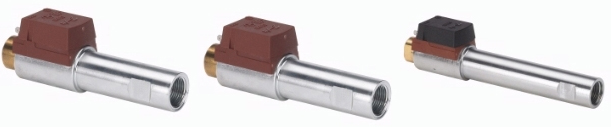

Danfoss Oil Preheaters



Danfoss Oil Preheaters:

Type oil preheaters

FPHB 3/5
FPHB 5 LE
FPHB 10

Danfoss oil preheater FPHB with PTC-heating element ensures optimum and equal conditions for the oil nozzle.


FPHB can be offered in different versions with capacities from 3 kg/h up to 10 kg/h. FPHB 3 and 5 can also be delivered with a built-in closing valve and is a part of our LE-system.



Danfoss oil preheaters FPHB 3/5 : Oil preheater type FPHB is used to preheat oil with a viscosity of max. 10 mm2/s (cSt).


Danfoss oil preheaters FPHB 5 LE : Oil preheater type LE with a build-in shut off valve is used to preheat oil with oil a viscosity of max. 10 cSt. The pump type BFP-LE or BFP LE-S must be used to prevent pre- or after dripping from the nozzle.


Danfoss oil preheaters FPHB 10 : FPHB 10 is designed for burners up to 80 kW.

DANFOSS Oil Pumps





Danfoss Oil Pumps:



Type of oil pumps

Danfoss Oil Pumps series BFP 11
Danfoss Oil Pumps series BFP 20/21
Danfoss Oil Pumps series BFP 21 LE/LE-S
Danfoss Oil Pumps series BFP 41
Danfoss Oil Pumps series BFP 52
Danfoss Oil Pumps series BFPH
Danfoss Oil Pumps series RSA
Danfoss Oil Pumps series RSH



Danfoss fuel oil pump models BFP 11, BFP 20/21, BFP 21 LE/LE-S, BFP 41, BFP 52, BFPH, RSA, RSH



BFP 11 Danfoss oil Pumps :

Compact danfoss oil pumps with diaphragm regulator, ring filter and pressure adjustment on side.

BFP 11 L3 Kerosene/Light oil
BFP 11 R3 Kerosene/Light oil





BFP 20/21 Danfoss oil Pumps: Compact danfoss oil pumps with diaphragm regulator, cartridge filter and pressure adjustment on front.
BFP 20 L5 Light oil
BFP 20 R5 Light oil
BFP 20 L3 Light oil
BFP 20 R3 Light oil
BFP 21 L3 Kerosene/Light oil
BFP 21 R3 Kerosene/Light oil
BFP 21 L3 Light oil
BFP 21 R3 Light oil
BFP 21 L5 Light oil
BFP 21 R5 Light oil
BFP 21 L3 Light oil
BFP 21 R3 Light oil

BFP 21 LE/LE-S Danfoss oil Pumps :

Special danfoss oil pumps used in combination with oil nozzle type LE or preheater type LE with closing function.
BFP 21 L3 LE Light oil
BFP 21 L3 LE Light oil
BFP 21 L3 LE-S Light oil

BFP 41 Danfoss oil Pumps :

Compact danfoss oil pumps in standard housing with NC solenoid valve placed on side, diaphragm regulator, cartridge filter and pressure adjustment.
BFP 41 L3 Light oil
BFP 41 L3 Light oil
BFP 41 L3 Kerosene/Light oil

BFP 52 Danfoss oil Pumps :

Compact danfoss oil pumps with two pressure ranges, two regulators, filter and nozzle line cut-off.
BFP 52E L3 Light oil
BFP 52E L5 Light oil
BFP 52E R3 Light oil
BFP 52E R5 Light oil



BFPH Danfoss oil Pumps :

Compact danfoss oil pumps specially adapted for the American market.

BFPH (RH) Kerosene/Light oil



RSA Danfoss oil Pumps :

danfoss oil pumps with piston regulator with shut-off function and built-in filter. RSA oil pump is designed for both light oil and kerosene.
RSA 40 R Kerosene/Light oil
RSA 60 R Kerosene/Light oil
RSA 125 R Kerosene/Light oil
RSA 95 R Kerosene/Light oil
RSA 28 R Kerosene/Light oil
RSA 40 L Kerosene/Light oil
RSA 60 L Kerosene/Light oil
RSA 125 L Kerosene/Light oil
RSA 95 L Kerosene/Light oil
RSA 28 L Kerosene/Light oil

RSH Danfoss oil Pumps :

danfoss oil pumps with piston regulator with shut-off function and built-in filter. RSH oil pump is designed for both light and heavy oil.
RSH 63 R Light oil/Heavy oil
RSH 125 R Light oil/Heavy oil
RSH 95 R Light oil/Heavy oil
RSH 32 R Light oil/Heavy oil
RSH 63 L Light oil/Heavy oil
RSH 125 L Light oil/Heavy oil
RSH 95 L Light oil/Heavy oil
RSH 32 L Light oil/Heavy oil

Danfoss Oil Burner Pump
We import and supply Danfoss Oil Burner Nozzles/ Danfoss Oil burner pumps, Danfoss Ignition Transformer, Danfoss Photocell, Danfoss Flame sensor, Danfoss burner controller, Danfoss Sequence controller, Danfoss Burner Controls Etc..




Danfoss Photocells:


Danfoss photo resistors of type LD and LDS Series are suitable for to detect flame in yellow flame burners.


These are compatible with Danfoss OBC and BHO controllers and are available in black and red color indicating normal and high sensitivity of photo resistors.


These are available in different Cable Lengths and with suitable Clamp & Flange for Mounting Purposes.



Danfoss LD Photo Units : Photo units with normal sensitivity. For yellow-flame oil burners.



Danfoss LDS Photo Units : Photo units with high sensitivity. For yellow-flame oil burners.



Danfoss UV Photo Units : Ultraviolet flame sensors UV for blue flame oil burners
